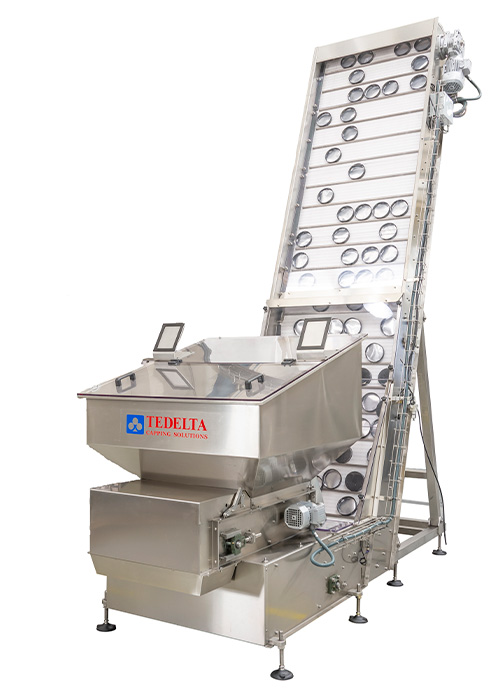

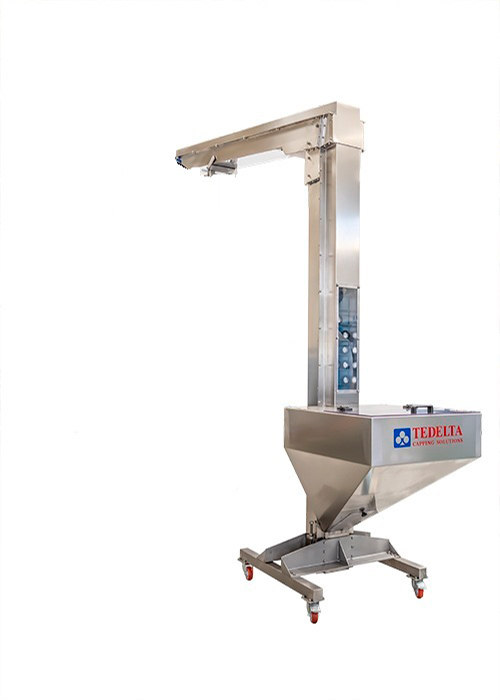

CAP FEEDER

For feeding purposes of cork caps, aluminum, PVC, etc. to the sorting of the capping machine



  • Steiless steel construction
  • Designs addapted to costumers needs.
  •  Cap Storage aprox, 0,8m3
  • Clear Metracrilate dust folding cover over inclined belt, allowing visualization and access to the caps.
  • Height and incline angle controlled by adjustment Wheel,
  • Switchboard incorporated
  • Photoelectric sensor to be fitted in the Capper´s hopper.

BLOW AIR SYSTEM

For feeding purposes of plastic/rigid caps that are stored away from the capper, or in a special cap storage.

  • Distribution of caps through blow air.
  • Bulk Hopper placed, according to the specifications of the costumer, max. 150 m.
  • Photoelectric sensor to be fitted in the Cappers Hopper.

CAP FEEDER ORIENTATOR

WATERFALL SYSTEM



To supply caps to the capping machine while making the role of cap sorter and cap feeder.



WATERFALL TYPE.

  • AISIO 304 Stainless steel construction
  • Feeds and orients standard caps up to 150 mm of diameter
  • Cap Feeder with gravity system
  • Gentle product handling

CAP SORTERS

CENTRIFUGUE, MECHANICAL AND MECHANICAL-ALVEOLAR

CENTRIFUGUE (Image 1)

  • Stainless Steel construction.
  • Suitable for aliminium and plastis caps.
  • Recommended for special design caps.
  • Capacity up to 1000 cph

MECHANICAL (Image 2)

  • Stainless Steel construction
  • Suitable for aluminium and plastic caps
  • Recommended for caps with less diameter than height.
  • Output up to 300 cph.

MECHANICAL ALVEOLAR (Image 3)

  • Stainless Steel construction
  • Suitable for aluminium and plastic caps.
  • Recommended for caps with more height than diameter.
  • Output up to  600 cph.

FULLY AUTOMATIC CAP FEEDING SYSTEMS

FULLY CAP FEEDING SYSTEM (Image 1)

  • Designer and manufacturer of complete cap feeding systems with specific technical requirements of our customers.

CAPS BELT CONVEYOR (Image 2)

  • Cap Transportation, metallic or plastic through conveyor belts, magnetic belts, blow air system.

CAPS BELT CONVEYORS (Image 3)

  • AISI 304 Steinless Steel conveyors.
  • Tedelta uses top brand manufactures components, bearings, belts…
  • Clear policarbonate dust cover.

CAP DISTRIBUTION BULK HOPPER (Image 4)

  • Bulk hopper located at main cap bin storage.
  • Vibrating cap feeding and regulation system from the bulk hopper to the cap feeder
  • Large capacity cap bin is located at operator lever for ease loading.
  • Gentle product handling
  • Low maintenance

DISCHARGE AND RECOVERY OF CAPS  (Image 5)

  • Designed to recover caps after production thanks to by-pass device activated (driven) by pheumatic system.
  • Rotary discharge chute for easy operation.

Caps applications
